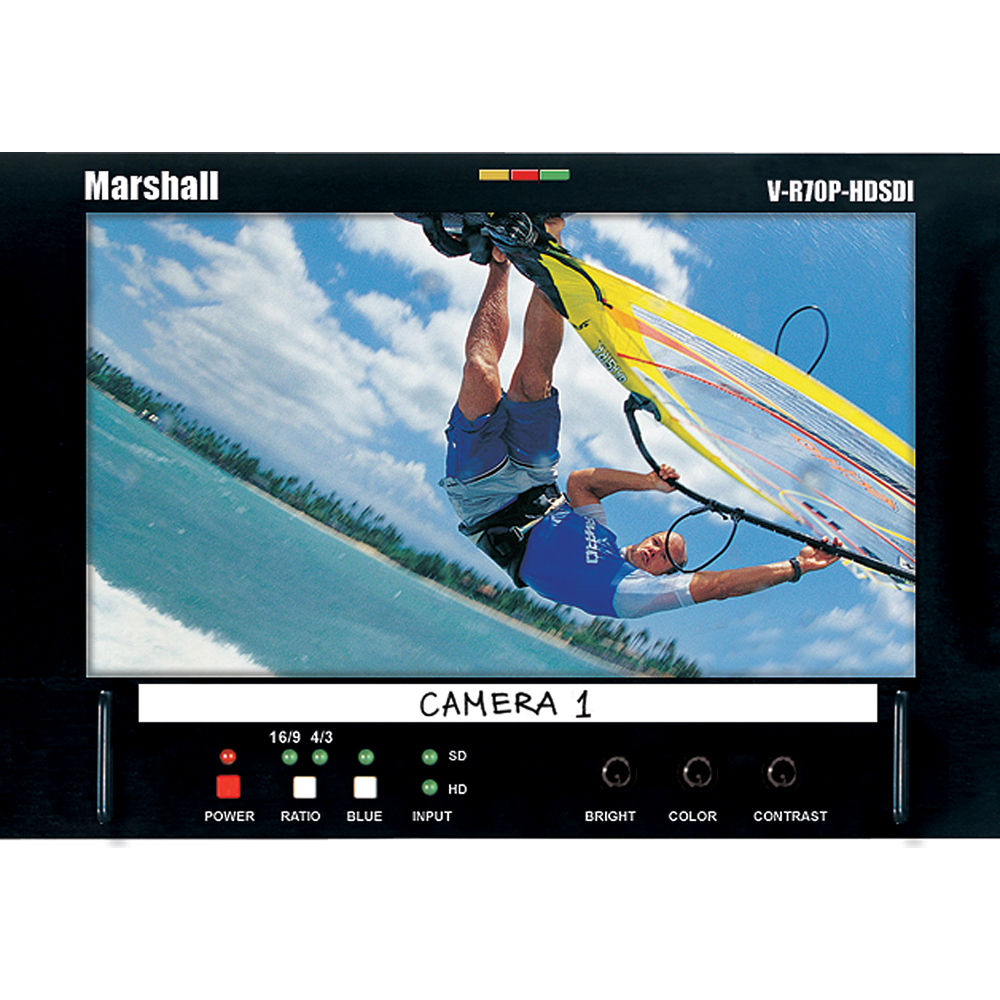

Marshall_Electronics_V_R70P_HDA front



Marshall V-R70P-HDA Side



Marshall V-R-70P-HDA Rear



Marshall V-R-70P-HDA Rear 1

Previous
Next

MARSHALL V-R70P-HDA
OPERATIONA; MANUAL

The V-R70P-HDA features our completely Digital TFT-MegaPixel high resolution LCD screen with 1.2 million pixels, V-Mount battery adapter, 4-pin XLR power jack, and optical-grade polycarbonate screen protection. Analog signals are digitized using advanced 10-bit processing with 4x oversampling and adaptive 5-line comb filter. Video is scaled to fit onscreen in the highest resolution using a state-of-the-art LSI that incorporates 4×4 pixel interpolation with precision Gamma correction to produce the best images available.

Features

  • Durable metal enclosure
  • “V” Mount battery adapter included
  • Runs 4 to 6 hours on optional 50WH battery
  • High Resolution 7-inch widescreen 800 x 480 Dots with 1.2 million pixels
  • Optical-grade polycarbonate screen cover with Anti-reflective/Anti-glare coating
  • 100% digital processing
  • Analog signals converted to 10-bit digital
  • High resolution scaling of all images
  • Wide viewing radius
  • 380 candelas per square meter (cd/m²) luminance produces enhanced image quality in varying light and viewing conditions
  • 400:1 ratio of contrast between black and white luminance values
  • 4:3 and 16:9 screen aspect ratios
  • Automatic NTSC/PAL format detection
    • Easy-to-see three color tally indicators
    • Built-in Color Bars
    • Blue Screen for color adjustment
    • Adjustment Settings Memory
    • Includes 1 (one) -20 mounting plate that can be
      attached to any edge of the enclosure
      (additional mounting plates available)
    • Includes universal voltage Class-2 power supply
    • Optional rack mount kit

Standard inputs:

  • Composite Video PAL/NTSC with loop output
  • Component YPbPr HD/SD with loop-out
  • 4-Pin XLR D.C. power jack

Specifications

V-R70P-HDA SPECIFICATIONS
Display (Viewing Area) 7″ (6.14″ × 3.27″)
Resolution (Pixels) 800 H × RGB × 480 V
Dot Pitch 0.065mm × 0.175mm
Brightness (in cd/m²) 380
System NTSC/PAL auto recognition
Inputs 1 Composite, 1 Component HD/SD
Dimensions 7.6″W × 5.16″H × 2.16″D
Approx. Weight 1.8 lbs
Power Consumption 10-17 VDC, 600 mA
