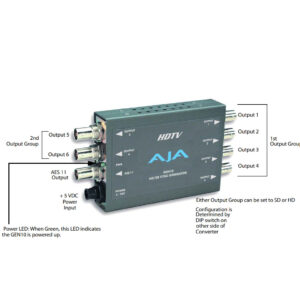

sync generator details

AJA Gen10 switches


Previous
Next

AJA GEN10 Manual

AJA GEN10 Manual

Gen10

HD/SD/AES/Tri-Level Sync Generator

The AJA GEN10 is an effective and flexible SD/HD/AES sync generator. Featuring 7 outputs including 2 groups of independently controlled SD/HD sync outputs and 1 AES-11 output. The SD outputs can be switched between Color Black or Color Bars. HD tri-level sync can be switched between 19 different HD formats including all that are in use today. The AES-11 output can be switched between SILENCE and TONE. All outputs are in sync with each-other and are sourced from an accurate master time base.

All AJA Mini-Converters use a universal power supply and plug connections for use all around the world.

Features

AJA GEN10 HD/SD Sync Generator

  • HD Tri-level sync generation
  • SD Color Black or Color Bars
  • Two groups of independently switchable outputs allows simultaneous HD and SD sync generation
  • AES-11 output switchable between silence and tone
  • Multiple outputs can synchronize entire systems without requiring a Sync DA
  • 5-18VDC Power
  • External dip switch configuration

AJA Video Sysytems

Specifications

Formats

• 1080i 50, 59.94, 60
• 1080PsF 23.98, 24, 25, 29.97, 30
• 1080p 23.98, 24, 25, 29.97, 30
• 720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• 625i, 525i




HD Sync

• Tri-level




SD Sync

• Color Black, 75% Color Bars




AES

• AES-11, 48 kHz, silent or 1 KHz tone (-20 or -18 dBFS)




Accuracy

• 3 ppm




User Controls

• External dipswitch




Size (w x d x h)

• 5.8″ x 3.1″ x 1.0″ (147mm x 79mm x 25mm)




Power

• +5-18VDC, 2 watts, power supply required, included with purchase




Environment

• Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
• Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)
