ViewZ VZ-070PM
OPERATIONAL MANUAL
VZ-070PM-3G; 3G SDI LEVEL A/B (YCbCr, RGB 4:4:4) Support; Multi-Format Support; High Resolution (1024 x 600) Embedded HDMI-SDI & SDI-HDMI Cross Conversion; HDMI to SDI Convert & Display Out; IPS LED Backlight Display with 12bit Processing; 2K Input Capability; False Colors, Peaking Filter, Focus Assist ; DSLR Scaling, Wide Color Gamut, Precise White Balance & Gamma; Real-time RGB parade.
Features
- Model Number: VZ-070PM-3G
- 3G SDI LEVEL A/B (YCbCr, RGB 4:4:4) Support
- Multi-Format Support
- High Resolution (1024 x 600)
- Embedded HDMI-SDI & SDI-HDMI Cross Conversion
- HDMI to SDI Convert & Display Out
- IPS LED Backlight Display with 12bit Processing
- 2K Input Capability
- False Colors, Peaking Filter, Focus Assist
- DSLR Scaling, Wide Color Gamut, Precise White Balance & Gamma
- Real-time RGB Parade & Vectorscope Display
- Zoom Mode, Jog Dial for Easy Menu Selection
- UMD Support
- Programmable Function Key
- H/V Delay, Freeze Display, Aspect Setting
- De-Imbedded Audio Level Meter (16ch)
- Pixel to Pixel View, Red/Green Mode Tally
- Time Code, Various Markers, On-Screen Menu
- Screen Color Mode: Blue, Red, Green & Mono
- Maximum Brightness (On/Off)
- V-mount for Battery Powered Operation
- Key Lock, RJ-45 Remote Control
Specifications
Display
| Screen Size | 7″ |
| Max Resolution | 1024 x 600 |
| Pixel Pitch | 0.05 mm x 0.15 mm |
| Brightness | 400 cd/m²(Typical) |
| Contrast Ratio | 800 : 1 |
| Aspect Ratio | 16 : 9 |
| Viewing Angle (H/V) | 170°/170° |
| Display Color | 16.7 Million (8bit) |

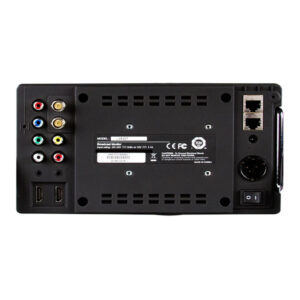

Interface
| SDI In / Out | 1 / 1 |
| HDMI In / Out | 1 / 1 |
| Component (Y, Pb, Pr) In (RCA Jack) | 3 / 3 |
| AV (Composite) In / Out (RCA Jack) | 3 / 1 |
| RJ45 (Remote Control) | 1 |
| RS-485 In / Out | 1 / 1 |
| PC Audio In / Out (Analog Stereo) | 1 / 1 |
| Audio In / Out (16ch De-Embedded Audio Selected Output) | 1 / 1 |
Audio
| Built in speaker | 2W x 1 |
Dimensions & Weight
| Outline Dimension (W x H x D) | 8.7 x 5.0 x 1.9″ / 221 x 126 x 48.3 mm |
| Net Weight | 2.02 lbs / 916.5g |
Input Format
| SMPTE 425M-A | 1080p / 60,59.94,50 psf 1920 x 1080i / 60,59.94,50 |
| SMPTE 274M | 1920 x 1080p / 30,29.97,25,24,23.98 psf 1920 x 1080i / 60,59.94,50 |
| SMPTE 260M | 1920 x 1035i / 60,59.94 |
| SMPTE 296M | 1280 x 720p / 60,59.94,50 |
| ITU-R BT.656 | 720 x 576i / 50 |
| 2K Format | 2048 x 1080 (24p/psf, 23.98p/psf) |
General Summary
| Power – Electrical Ratings | XLR-4p (DC12V) / DC 12 24V |
| Power – Consumption | ≤ 14.4 W |
| Warranty | 2 Years |
| Operating Temperature | 32 – 104°F / 0 – 40°C |
| Package Include | Monitor x1, Power Adapter x1, Stand x1 |
